| Model No.: TQ-3 | Place of Origin: China |
Product Show
Technical Parameter
|
Type |

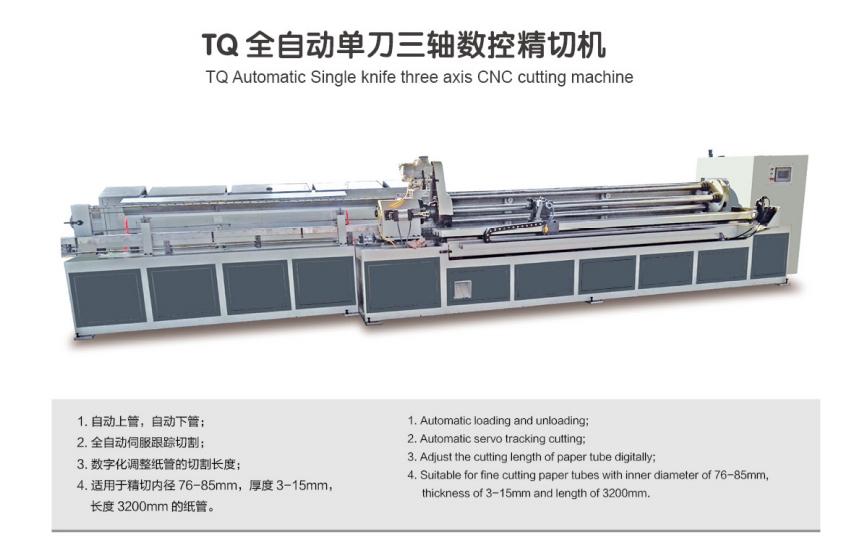

Single-tool NC Three-axis Automatic Precision Cutting Machine |
||
|
Technical parameter |
Synchronization controller |
||
|
Paper tube diameter |
Φ76-85（mm) |
PLC controller |
Delta |
|
Paper tube thickness |
3-15（mm) |
Interface |
Kunlun |
|
Length of cut pipe |
20-3200（mm) |
Program version |
cx-pq.04 |
|
Cutter number |
Group 1(Standard) |
Actuator (contactor, etc.) |
Omron/CHINT |
|
Work air pressure |
0.6Mpa |
Signal element |
Omron/Pefun |
|
Control mode |
numerical control |
Button |
Siemens |
|
Motor power |
Main motor 3.0kw |
Emergency stop |
Siemens |
|
Servo motor 3.0kw+1.5kw*2 |
knob |
Siemens |
|
|
Conveyor motor 0.75 kw |
Cylinder element |
CEHNGDI/SUOPAI/ |
|
|
Number of operators |
1 |
Frequency converter |
ENERGY |
|
|
|
Servo motor |
EURA |
|
Size（mm） |
Configuration device |
||
|
Host Size: L*W*H |
8500mm*1500*1600mm |
Charging |
Automatic |
|
Cutter specification |
2*100*22mm |
Blanking |
Automatic |
|
Total weight |
3300kg |
Walking guideway |
square straight line |
|
Drive system |
Vertical adjustment of knife and die |
Separation and Adjustment of Tool Table and Main Machine |
|
|
Main motor |
dongli/Yongshun |
Ball screw |
4040 |
|
Main engine speed |
1400r/min |
Pipe grasping device |
Instant brake |
|
Transmission mode |
Synchronous belt |
Parts |
|
|
Bearing |
Wanxiang |
Application tools |
A set of inner hexagonal wrenches |
